    Automatic retractable machine in "L" format - S560NA

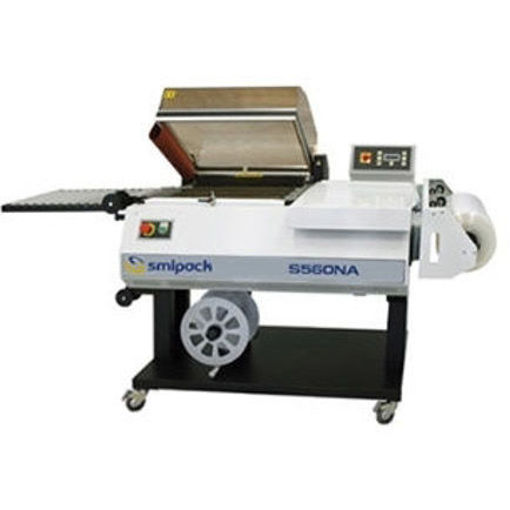

    AUTOMATIC RETRACTABLE MACHINE IN “L” FORMAT Model S560NA
    SKU: S560NA





    Portes grátis



    AUTOMATIC RETRACTABLE MACHINE IN “L” FORMAT
    Model S560NA


    Features:

     Welding and heat-shrinking system in a single operation

    • Teflon sealer blade

    • Cooling of sealing bars in a liquid closed loop

    • Liquid level display in the coolant tank

    • Quick adjustment of the worktable with external handle

    • Mobile work table, independent of the film reel holder, for a better adaptation to the dimensions of the product to be packed

    • Emergency botton

    • Automatic opening of bell

    • Automatic package output via motorized carpet

    • Flextron control system with LCD control panel



    Technical features:

    - Feed: ......................................................................... 220-240 1PH – N – PE 50/60Hz
    - Electric power: ............................................................ 3750W
    - Welding dimensions: .................................................... 560 x 430mm
    - Maximum pack height: ................................................. 260mm
    - Average hourly production: ........................................... 400 – 900 pieces
    - Maximum size of the film reel: ...................................... 600 x Ø 300mm
    - Machine dimensions: ................................................... 2020 x 790 x h 1090mm
    - Net weight of the machine: .......................................... 159Kg
    - Dimensions of machine after packed: ............................ 1470 x 950 x h 875mm
    - Packaged machine weight: ........................................... 190Kg


    Optionals:

    -    Stainless steel cooking plate.
    -    Double coil holder.
    -    Waste film recovery device.
    -    Cycle start pedal kit
